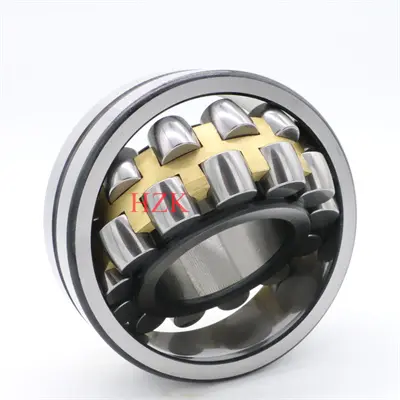

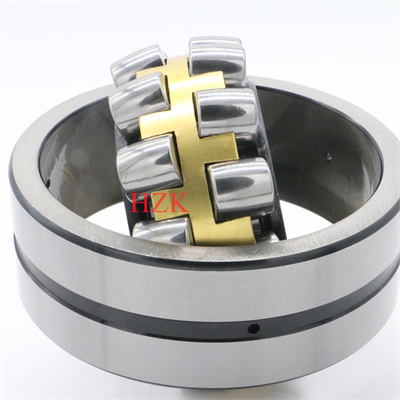

China Spherical Roller Bearing Manufacturers Factory – 22218CA spherical roller bearing 90x160x40 – Nice Bearing

Product description

• Item:22218CAW33 Bearing
• Type: Spherical Roller Bearing Bearings
• Material: Steel
• Cage: Brass / Bronze
• Closures: Unsealed
• Lubrication: Lubrication Groove & 3 Holes in Outer Ring
• Dimensions: 90mmx 160mmx 40mm/Metric
• ID (inner diameter)/Bore: 90mm
• OD (outer diameter): 160mm
• Width/Height/thickness: 40mm
• Size: 90mmx 160mmx 40mm
• Quantity: One Bearing
• Dynamic load rating Cr: 410,000 N
• Static load rating Cor: 375,000 N
• Limiting Speed:
  • Grease Lubrication: 3,200 RPM
  • Oil Lubrication: 4,000 RPM

Product Specifications

HZV spherical roller bearing:

Spherical roller bearings have two rows of rollers with a common sphere raceway in the outer ring and two inner ring raceways inclined at an angle to the bearing axis. This gives them an attractive combination of design features making them irreplaceable in many demanding applications. They are self-aligning and consequently insensitive to misalignment of the shaft relative to the housing and to shaft deflection or bending.

Spherical roller bearings are leading in design and can, in addition to high radial loads, accommodate high axial loads acting in both directions.
The standard range of spherical roller bearings comprises

–   open bearings

–   sealed bearings

–     Bearings for vibratory applications.

Spherical Roller Bearing Product features:

1).The rail way of outside race is in shape of sphere.

2).It has self aligning and it can make up for the error which from different angles. But its opposite gradient between outside and inside race is less than 3 degrees.

3).The structure principle and the character of the bearing are the same with self aligning ball bearing.

4).Under the condition of permissible volume of load and permissible speed of rotation, they can interchange.

Spherical Roller Bearing Application:

Self aligning roller bearings apply to precise instrument, the electrical appliance of low noise, automobile, motorbike and other machines. It is used the most widely in mechanical industry.

We can also supply various types of bearings according to your sample and design.

Manufacturing high-grade products is our permanent goal.

Structure:
Spherical Roller Bearing CC series
Spherical Roller Bearing CA series
Spherical Roller Bearing CAE series
Spherical Roller Bearing MB series
Spherical Roller Bearing E series
Spherical roller bearing with CC cage

High Speed Spherical Roller Bearing 22218 22218CA 22218CC 22218MA

Product Details

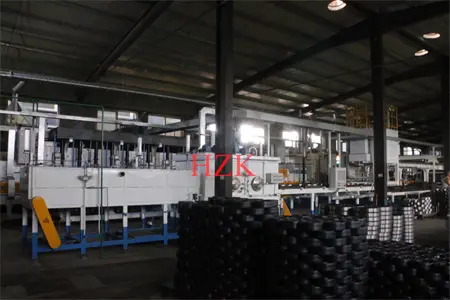

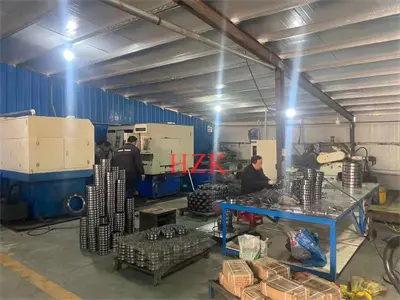

Our factory

Large amount of spherical roller bearing 22218 in stock,contact with me for your request.
